FOX Stage 3 Mid Travel Suspension Kit - Tacoma 2005-2022
This complete kit features everything necessary to lift your Tacoma up to 2.5″ and provides the ultimate on-road and off-road ride. Stage 3 upgrades to 2.5 rear shocks for heavier loads and harder use.
-Front Coilovers: Fox 2.5 Remote, 0-3″
-Front UCA: Icon Delta Joint
-Rear Shocks: Fox 2.5 Remote, 1.5-3″
-Rear Springs: Icon Mini Pack
-Rear U-Bolt: Archive Garage Flip with 2.7″ Super Bumps
Fox 2.5 Remote 0-3" Coilovers
The front of Tacoma's use A-Arms with a large motion ratio so large shocks are required provide off-road capability. Fox 2.5 coilovers provide the diameter necessary to make the damping force required to prevent your Tacoma from being too bouncy. The remote reservoirs decrease the operating pressure for a smoother ride and longer life span. The extended travel allows for lift heights up to 2.5" without the suspension over extending. For real off-road performance look no further than Fox 2.5 Extended Travel Coilovers for your Tacoma.
Icon Delta Joint Upper Control Arms
Extended travel upper control arms (UCA's) are necessary for lift heights over 1", especially when used off-road. We recommend the Icon Delta Joint UCA's because they are sealed and externally greasable meaning they'll have a long, squeak free life. Billet tubular control arms use greasable bushings on the frame side for a compliant ride. Give us a call if you'd like to order this kit with billet arms.
Fox 2.5 Remote Reservoir Rear Shocks
Toyota Tacoma's carrying heavy loads or seeing serious off-road use should use a large diameter 2.5 shock for greater durability and tunability. These particular shocks are longer travel Fox Tundra rear shocks which we configure to fit the rear of your Tacoma. When combined with our custom tuning this is as good as it gets for bolt on performance.
Icon Mini Pack
Icon Add-A-Leaf rear springs provide up to a 1.5 lift to the rear of your 05+ Toyota Tacoma. For maximum lift use all three leafs and leave the stock overload. For slightly less lift the factory overload leaf can be removed.

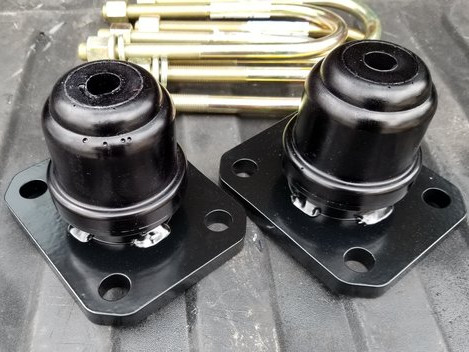

Archive Garage U-Bolt Flip
The Archive Garage U-Bolt flip kit increases ground clearance and also provides the necessary bump stop spacer to prevent bottoming out on the shocks.
